| TECHNICAL PARAMETERS |
| Certificate | Meeting the CE requirement |

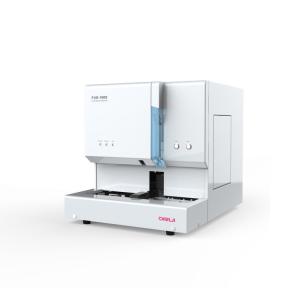

| Product Description | FUS-1000 Urinalysis Hybrid enables routine analysis as well as urine formed element analysis and counting through one sampling. |
| Throughput | Formed elements analysis + Chemistry analysis: 60t/h (maximum);
Formed elements analysis: 60t/h (maximum);
Chemistry analysis: 60t/h |
| Principle | Formed element testing method: : Flow Type Micro-imaging Technology
Chemistry testing method: Photoelectric colorimetry
SG: Refractive Gravimeter Method
Turbidity: Scattering Method
Color: RGB Primary Colors Method
(SG/Turbidity/Color needs SG unit which is optional) |
| Images | 950 real images and 200 times magnification |
| Formend elements items | 12 items
Red blood cell (RBC), white blood cell(WBC), white blood cell cluster (WBCC), squamous epithelial cell (SQEP), non-squamous epithelial cell (NSE), hyaline cast (HYAL), pathologic cast(UNCC), bacteria (BACT),
yeast (BYST), unclassified crystal (UNCX), sperm (SPRM) and mucous strands (MUCS). |
| Chemistry items | 14 items maximum
Urobilinogen (UBG), bilirubin (BIL), ketone body (KET), blood (BLD), protein (PRO), nitrite (NIT), leukocyte (LEU), glucose (GLU),
pH value (pH), specific gravity (SG), vitamin C (VC) (optional), microalbumin (MALB) (optional), creatinine (Cr) (optional) and
urinary calcium (Ca) (optional). |
| Physical items | 3 items
Specific gravity (SG) (optional), turbidity (optional), and color (optional). |
| Calculate items | ACR |
| Wavelengths | 525 nm, 572 nm, 610 nm, 660 nm |
| Sample type | urine |
| Sample volume | Min. volume: 3mL non-centrifuged urine; aspiration volume: about 2mL |
| Sample capacity | 50 samples |
| Maximum capacity of strip sealed bin | 200 strips |
| Maximum capacity of waste strip bin | 400 strips |
| Door control function | Y |
| Strip onboard stability | 3 days (24 h) |
| Sample bar code identification | A built-in bar code reader, automatic scanning of sample bar code;
An external bar code reader, manual scanning of bar code (optional). |
| Port | Data communication interface: bidirectional RS-232 communication interface LIS interface: internet access LIS and serial port LIS |
| LIS system | Both-way communication with LIS system is supported |
| Test results storage capacity | ≥100,000 data |
| Weight | Host: 60kg |
| Dimensions (L×W×H) | Host: 520mm×702mm×566mm |
| Power consumption | Host: 300VA
Computer: 400VA (optional) |
| Working temperature | 10℃~30℃ |
| Working humidity | not greater than 75% |
| Atmospheric pressure | 75kPa~106kPa |
| Supply voltage | 100V-240V~ 50/60Hz |
